40ft High Cube New Side Open Container: Full Length Lateral Access at Maximum Height

The 40ft High Cube New Side Open Container combines the massive volume of a 40ft high cube with the unrestricted lateral loading capability of a full length side opening. This means you can access any point inside the container directly from the side, load oversized items that will not fit through standard end doors, and work with the entire 40ft interior without the limitations of end only access. The high cube height adds extra vertical clearance for taller items and higher stacking, making this the most accessible and spacious standard container configuration available.

This is a one trip unit built from premium Corten steel to full ISO and CSC standards. It arrives in near perfect condition with factory paint, clean surfaces, a lockbox for security, and forklift pockets for handling. Having been used for just a single voyage from the factory, it offers brand new performance at a practical price point.

Why Open Side with High Cube

A standard 40ft container with end doors only forces all loading through a single 8ft wide opening. Items stored 30 or 40ft from the door require you to navigate past everything else to reach them. The open side design eliminates this entirely by providing access along the full 40ft length of one wall. Combined with the high cube height of 9ft 6in externally, you get both maximum lateral access and maximum vertical space in a single unit. This configuration is unmatched for storing and retrieving varied inventory, loading wide or long items from the side, and creating open plan workspaces or retail displays.

Key Features

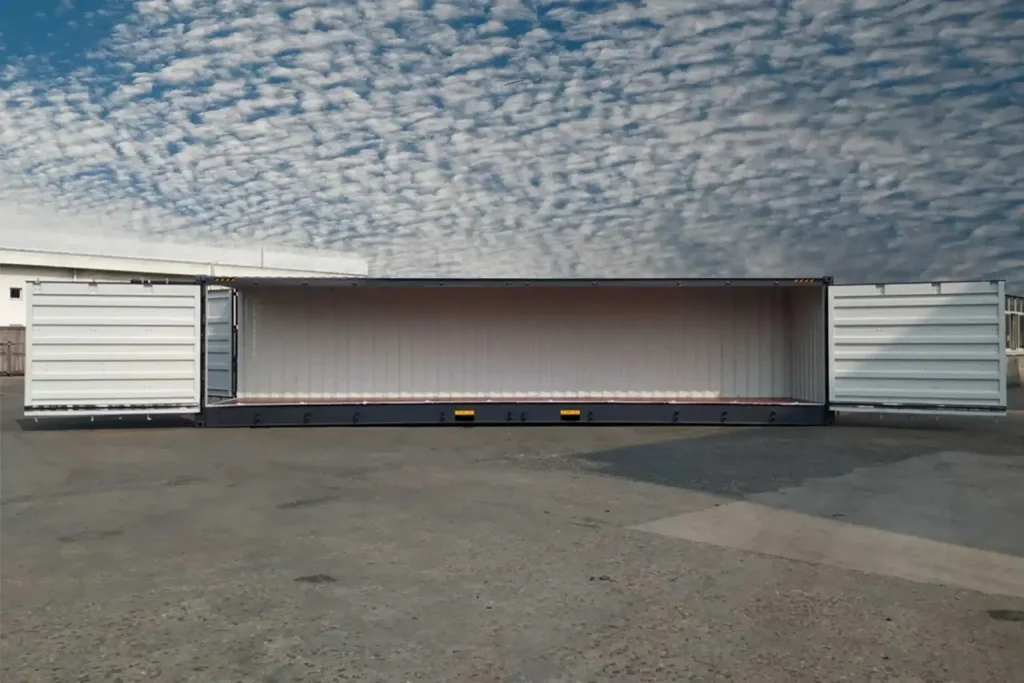

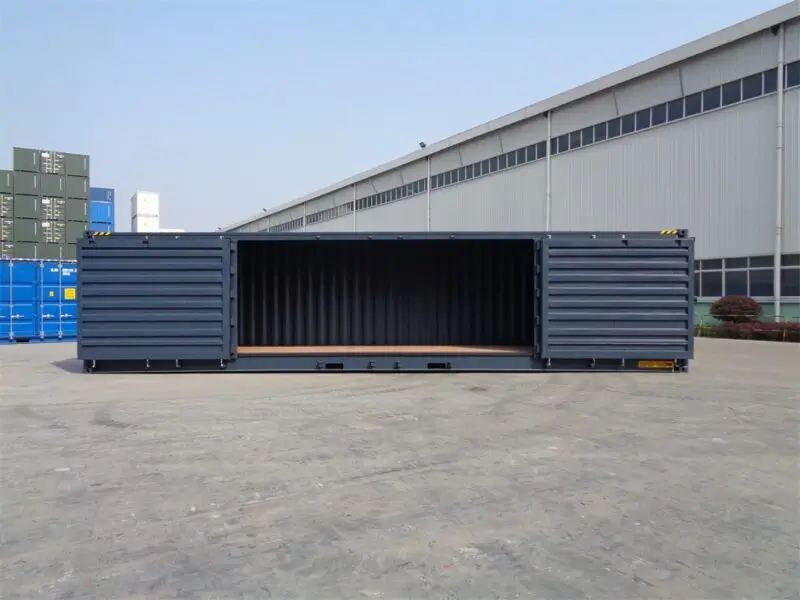

Full length side opening: Access doors spanning the entire long side of the container provide unrestricted lateral loading and retrieval at any point along the 40ft length.
High cube height: 9ft 6in (2,896 mm) external height provides extra internal clearance for taller items, higher stacking, and more comfortable working headroom.
Corten steel construction: Premium weathering steel provides natural corrosion resistance and decades of reliable outdoor service.
ISO and CSC certified: Meets all international standards for safe container handling, stacking, and transport.
Lockbox included: A welded steel shroud protects the padlock from cutting and prying attacks.
Forklift pockets: Integrated lifting points for easy handling and repositioning with standard equipment.
One trip condition: Essentially brand new with minimal wear, factory paint, and smooth operating hardware throughout.
2,698 cubic feet volume: Maximum standard container capacity with full side access.

Specifications

Internal Dimensions (L x W x H)
Imperial	39 ft 6 in x 7 ft 9 in x 8 ft 1 in
Metric	12,032 x 2,352 x 2,471 mm

External Dimensions (L x W x H)
Imperial	40 ft x 8 ft x 9 ft 6 in
Metric	12,192 x 2,438 x 2,896 mm

Door Opening (W x H)
Imperial	7 ft 8 in x 7 ft 10 in
Metric	2,340 x 2,388 mm

Weight and Capacity
Interior Floor Space	305 sq ft
Volume	2,698 cubic feet
Net Weight (Tare)	8,818 lbs (4,000 kg)
Max Gross Weight	67,200 lbs (30,480 kg)

Construction

Reinforced side frame: Additional structural steel around the full length side opening maintains container rigidity, stacking capability, and load bearing performance.

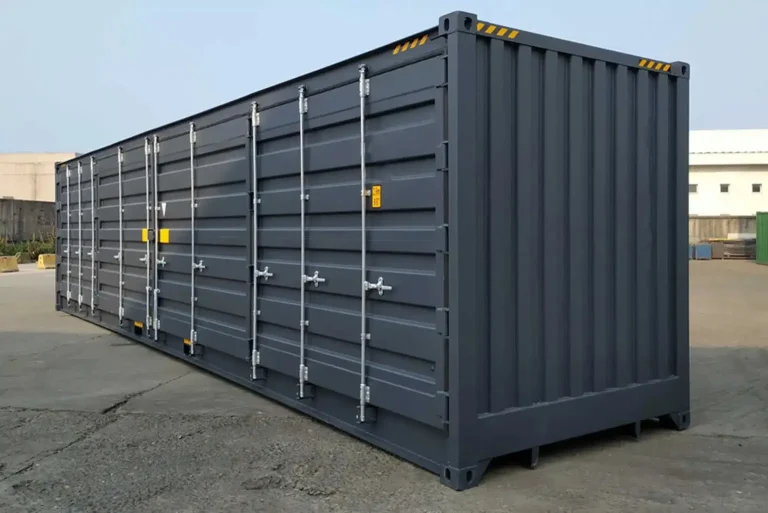

Multi panel side doors: Individual door panels fold back cleanly to clear the full side opening without obstruction.
Corrugated steel panels: Walls and roof feature corrugated profiles for maximum rigidity and impact resistance.
Sealed construction: When all doors are closed and locked, the container provides complete weatherproof enclosure against rain, wind, and dust.

Customizable Options

Tie downs: Additional internal lashing points for securing cargo during transport.
Ventilation: Enhanced airflow systems for stored goods that require air circulation.
Additional doors: Personnel doors or end access doors for multi directional entry.
Special paint finishes: Custom RAL colors to match branding or site requirements.

Delivery Requirements (Tilt Bed)

If delivered via tilt bed trailer, the following clearances are required at your site:

Length clearance: 100 ft (30.5 m)
Height clearance: 15 ft (4.5 m)
Width clearance: 12 ft (3.65 m)

Ideal Applications

Oversized and wide load storage
Palletized cargo requiring lateral access
Workshop and fabrication spaces
Retail and exhibition display units
Vehicle and machinery storage
Long material holding (timber, steel, pipe)
Event and festival infrastructure
Large scale conversion projects

The largest open side container available in one trip condition. Request a quote to discuss delivery method, custom options, or site access requirements.
