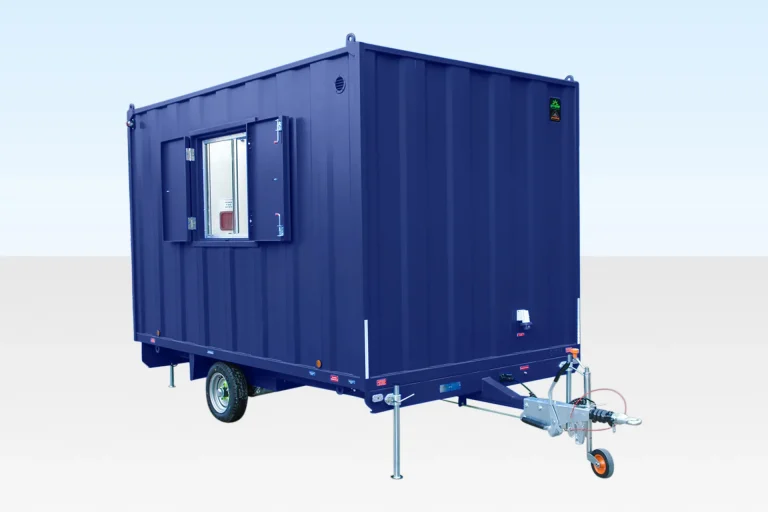

12ft x 7ft 6in Mobile Canteen Cabin: The Smallest Towable Welfare Unit Available
The 12ft Mobile Canteen Cabin is the most compact wheeled welfare unit on the market, designed specifically for sites where full size mobile canteens cannot access due to height restrictions, narrow lanes, weight limits, or tight turning circles. At just 3.66m long and 2.24m wide, it fits through gaps and into positions that larger 16ft and 20ft units simply cannot reach, while still providing heated, lit, and powered welfare space for site operatives who need a place to rest, eat, and recharge during their shift.
Mounted on wheels with a towing hitch, this unit is delivered by lorry and then repositioned around the site using a van, 4×4, or similar tow vehicle. Four corner jacklegs allow it to be leveled and stabilized once in position. The all steel construction with secure shutters and a robust door system protects against theft and vandalism during unoccupied hours, making it suitable for unsupervised locations and overnight storage of equipment.
Why 12ft Mobile
The 16ft mobile canteen is our standard size, but many sites have access constraints that prevent even a 16ft unit from reaching the work front. Motorway hard shoulders, urban utility trenches, railway trackside, residential street works, and sites accessed through car parks or underpasses all present height, width, or turning limitations that a larger unit cannot navigate. The 12ft mobile canteen is specifically sized to overcome these restrictions while still providing genuine welfare facilities rather than just a tent or the back of a van.
Key Features
- Wheeled chassis with tow hitch: Tow into position with any vehicle that has a suitable hitch. Reposition as the work front moves without crane hire or transport costs.
- All steel construction: Walls, roof, and chassis fabricated from durable steel for strength, weather resistance, and security.
- Secure steel shutters and door: Heavy duty shutters cover the window and a reinforced steel door protects the interior when the unit is unoccupied.
- Four corner jacklegs: Level and stabilize the unit on any ground surface once towed into its working position.
- 1,400 kg weight: Light enough for towing by standard site vehicles without specialist heavy haulage equipment.
- LED strip light: Energy efficient interior lighting.
- Two twin 13A sockets: Four power outlets for kettles, microwaves, phone chargers, and other equipment.
- Wall mounted heater: Maintains comfortable temperatures during cold weather.
- Noticeboard: Built in display area for site safety information and schedules.
- Vinyl flooring: 2mm vinyl over 18mm particle board for a durable, easy to clean surface.
- Vinyl faced plywood walls: Wipe clean interior surfaces for low maintenance hygiene.
- Window: Natural light when shutters are open.
Specifications
| External Dimensions (L x W x H) | |
|---|---|
| Metric | 3,660 x 2,240 x 3,020 mm |
| Imperial | 12 ft x 7 ft 4 in x 9 ft 11 in |
| Internal Dimensions (L x W x H) | |
|---|---|
| Metric | 3,460 x 2,140 x 2,330 mm |
| Imperial | 11 ft 4 in x 7 ft x 7 ft 8 in |
| Door Opening (W x H) | |
|---|---|
| Metric | 890 x 1,990 mm |
| Imperial | 2 ft 11 in x 6 ft 6 in |
| Weight and Utilities | |
|---|---|
| Weight | 1,400 kg (3,086 lbs) |
| Floor Type | 18mm particle board with 2mm vinyl covering |
| Electrical Requirement | 32 amp supply |
| Water | Mains or tank fed connection required |
Typical Applications
- Motorway and highway maintenance welfare
- Urban utility works with restricted access
- Railway trackside welfare facilities
- Mobile police incident and command units
- Mobile healthcare and first aid stations
- Residential street works canteen
- Short term project welfare
- Sites with height or width restrictions
Setup and Operation
The unit arrives by lorry and is towed to its working position using any vehicle with a compatible hitch. Lower the four corner jacklegs to level and stabilize, connect to a 32 amp electrical supply and water source, and the cabin is ready to serve. When the work front moves, raise the jacklegs, hitch up, and tow to the new location in minutes.
The smallest mobile welfare unit available, built for sites that nothing else can reach. Request a quote to discuss towing compatibility, delivery logistics, or multi unit requirements.
