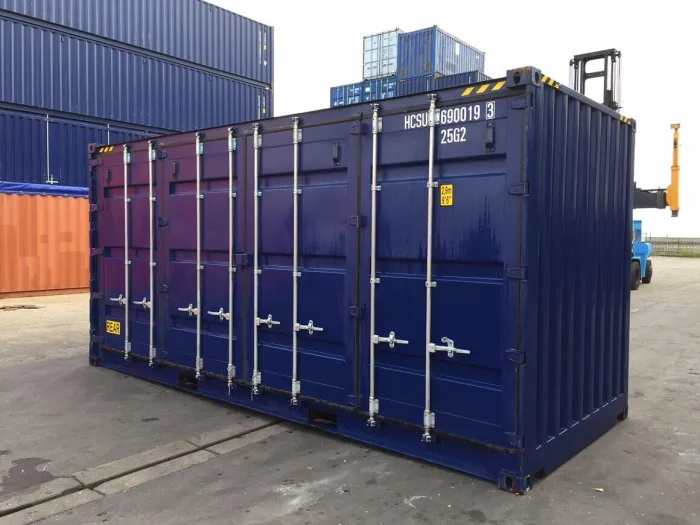

20ft Open Side High Cube Container: Full Length Side Access with Extra Height
The 20ft Open Side High Cube Container combines two of the most sought after container features into a single unit: full length side door access and the additional foot of height that high cube construction provides. The result is a container with 35.20 cubic meters of internal volume that can be loaded and unloaded from the entire long side, making it dramatically easier to access items stored at any point within the container without the limitations of end door only access.
Whether you are storing long materials like timber, pipe, or steel sections, loading wide equipment that cannot fit through standard end doors, or simply need the ability to reach items at the back without unloading everything in front, the open side design transforms how you interact with your container on a daily basis.
Why Open Side with High Cube
A standard end door container forces you to load and retrieve everything through a single opening at one end. Items stored at the back require you to move or climb over everything in front. The open side container eliminates this entirely by providing doors along the full 5,702 mm length of one side. You can access any item at any depth without disturbing the rest of your stored goods. Combined with the high cube height of 2,896 mm externally, you get both unrestricted lateral access and the vertical clearance to stack goods higher or store taller items that standard height containers cannot accommodate.
Key Features
- Full length side opening: Side doors measuring 5,702 x 2,494 mm provide access along nearly the entire length of the container, allowing loading and unloading at any point.
- High cube height: 2,896 mm (9 ft 6 in) external height gives you an additional foot of internal clearance compared to standard containers, ideal for taller items and higher stacking.
- Corten steel construction: The entire container is fabricated from weathering steel that naturally resists corrosion, providing decades of reliable outdoor service.
- Standard air vents: Built in ventilation maintains airflow through the interior, reducing condensation and protecting stored goods from moisture damage.
- High handles and locking gear: Easy to operate access hardware with secure locking mechanisms on both the side doors and end doors.
- Lockbox: A welded steel shroud protects the padlock from cutting tools and pry attacks.
- Two forklift pockets: Integrated pockets allow the container to be lifted and repositioned with standard equipment.
- Wooden floor: A solid timber deck provides a stable, load bearing surface for heavy items, pallets, and equipment.
- CSC certified: Meets international container safety standards for shipping, handling, and stacking.
- Stackable: Standard corner castings allow stacking with other containers for efficient use of yard space.
Specifications
| Internal Dimensions (L x W x H) | |
|---|---|
| Metric | 5,898 x 2,287 x 2,607 mm |
| Imperial | 19 ft 4 in x 7 ft 6 in x 8 ft 7 in |
| External Dimensions (L x W x H) | |
|---|---|
| Metric | 6,058 x 2,438 x 2,896 mm |
| Imperial | 19 ft 11 in x 8 ft x 9 ft 6 in |
| Door Openings | |
|---|---|
| End Door (W x H) | 2,114 x 2,494 mm (6 ft 11 in x 8 ft 2 in) |
| Side Door (W x H) | 5,702 x 2,494 mm (18 ft 8 in x 8 ft 2 in) |
| Weight and Capacity | |
|---|---|
| Volume | 35.20 cubic meters |
| Tare Weight | 3,100 kg (6,834 lbs) |
| Max Payload | 20,900 kg (46,076 lbs) |
| Max Gross Weight | 24,000 kg (52,911 lbs) |
| Floor | Wooden |
Color and Customization
The standard finish is RAL 5013 (cobalt blue), but this container is available in any RAL color to match your brand, site requirements, or aesthetic preference. Custom colors are applied before delivery so the unit arrives ready to position without any additional painting needed on site.
Construction
- Reinforced side door frame: The side opening is engineered with additional structural reinforcement to maintain the container rigidity and load bearing capability despite the large opening in the side wall.
- Multi panel side doors: The side opening uses multiple door panels that fold back smoothly, providing clear access to the full length without loose panels obstructing the workspace around the container.
- Corrugated steel panels: Walls and roof feature corrugated profiles for maximum rigidity and impact resistance.
- Continuous welded frame: All structural joints are fully welded for watertight integrity when all doors are closed and secured.
Ideal Applications
- Long material storage (timber, pipe, steel, fencing)
- Workshop and workspace with wide open access
- Retail and market vendor display and storage
- Vehicle and equipment loading from the side
- Frequent access storage requiring reach to any depth
- Event and exhibition setups needing wide openings
- Agricultural storage for implements and machinery
- Conversion projects requiring large wall openings
Full length side access combined with high cube height for the ultimate in storage flexibility. Request a quote to discuss color options, delivery logistics, or your specific access requirements.
