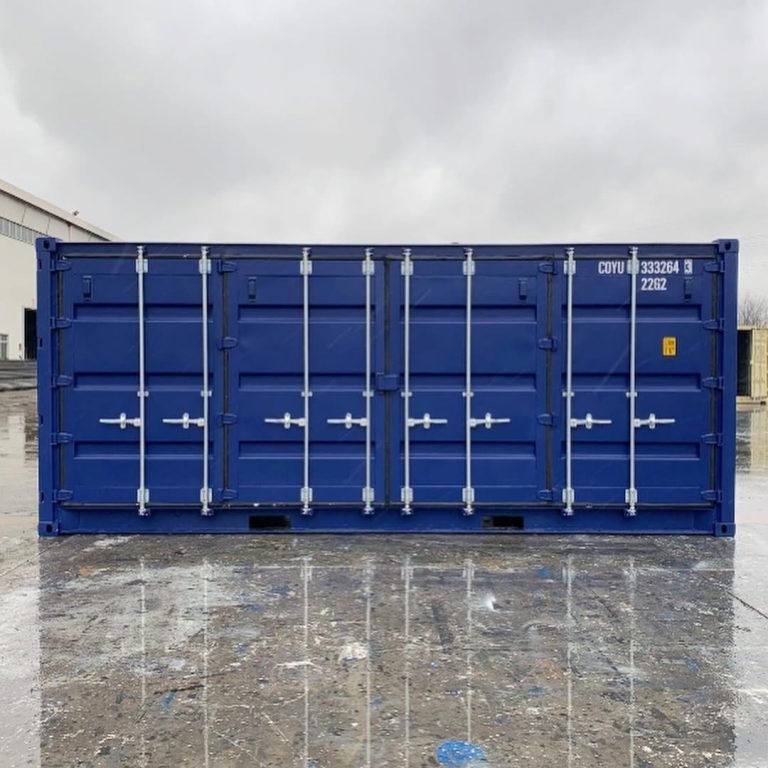

20ft Open Side Full Side Access Container: Complete Lateral Loading in One Trip Condition
The 20ft Open Side Container provides full length access along one entire side of the unit through double hinged doors spanning 5.82 meters, in addition to the standard double doors at the end. This dual access configuration makes it one of the most versatile loading and storage containers available, allowing you to reach any item at any depth from the side without moving goods in front, while still retaining conventional end access for standard forklift loading.
This is a one trip unit that has completed a single voyage from China and arrived in excellent condition with factory paint intact, clean interior surfaces, and fully functional hardware throughout. You get near new quality with the practical advantages of open side access and the enhanced ventilation of eight dedicated vents that keep the interior dry and condensation free.
Full Side Access Advantage
Standard containers force all loading and retrieval through a single end opening. When you store twenty different items and need the one at the back, everything in front must be moved first. The open side design changes this completely. The 5.82 meter wide side door opening gives you direct access to the full depth of the container from one side. You can load and unload specific items at any position without disturbing the rest of your stored goods. For businesses that access their container daily or store a variety of different items, this saves significant time and physical effort compared to end door only units.
Key Features
- Full length side doors: Double hinged doors spanning 5.82 meters along one side provide access to the entire internal length of the container from the side.
- Standard end doors: Full width double cargo doors at one end provide conventional loading access for forklifts and palletized goods.
- One trip condition: Used for a single voyage from the manufacturer. Arrives in excellent near new condition with maximum remaining service life.
- Corten steel construction: High strength weathering steel provides natural corrosion resistance and long term durability in all outdoor environments.
- Factory fitted lockboxes: Each set of doors (side and end) includes a welded steel lockbox that protects the padlock from bolt cutters and pry bars.
- 28mm marine plywood floor: A thick, moisture resistant plywood deck over steel cross members supports heavy loads, forklift operations, and concentrated point loads without flexing.
- Eight vents: Quadruple the ventilation of standard two vent containers, providing exceptional airflow that virtually eliminates condensation buildup inside the unit.
- Multiple locking bars: Independent cam lock mechanisms on all door panels provide secure, tamper resistant closure across both the side and end openings.
Specifications
| Internal Dimensions (L x W x H) | |
|---|---|
| Metric | 5,950 x 2,290 x 2,390 mm |
| Imperial | 19 ft 6 in x 7 ft 6 in x 7 ft 10 in |
| External Dimensions (L x W x H) | |
|---|---|
| Metric | 6,060 x 2,440 x 2,590 mm |
| Imperial | 19 ft 11 in x 8 ft x 8 ft 6 in |
| Door Openings | |
|---|---|
| End Door (W x H) | 2,340 x 2,280 mm (7 ft 8 in x 7 ft 6 in) |
| Side Door Width | 5,820 mm (19 ft 1 in) |
| Side Door Height | 2,280 mm (7 ft 6 in) |
| Weight and Capacity | |
|---|---|
| Tare Weight | 3,120 kg (6,878 lbs) |
| Cubic Capacity | 1,094 cubic feet |
| Floor Type | 28mm marine plywood over steel cross members |
| Ventilation | 8 vents |
Construction
- Reinforced side frame: The full length side opening is engineered with additional structural steel to maintain container rigidity and stacking capability despite the large door panel area.
- Double hinged side doors: Multiple door panels hinge open smoothly and fold back flat against the container end, clearing the full side opening without obstruction.
- Corrugated steel panels: Walls and roof feature corrugated profiles for rigidity and impact resistance.
- Continuous welded frame: All structural joints are fully welded for complete watertight integrity when all doors are closed.
- Enhanced ventilation: Eight vents (four times the standard) provide superior moisture management, making this container suitable for moisture sensitive goods and long term storage.
Ideal Applications
- Frequent access storage with varied inventory
- Long item storage (timber, pipe, steel, scaffolding)
- Workshop and workspace with wide open wall access
- Retail pop up shops and market vendor units
- Vehicle and equipment side loading
- Exhibition and display setups
- Construction material storage with daily retrieval
- Agricultural machinery and implement storage
The freedom to access anything, anywhere in your container, without moving everything else first. Request a quote for delivery scheduling or to discuss your specific access and storage requirements.
