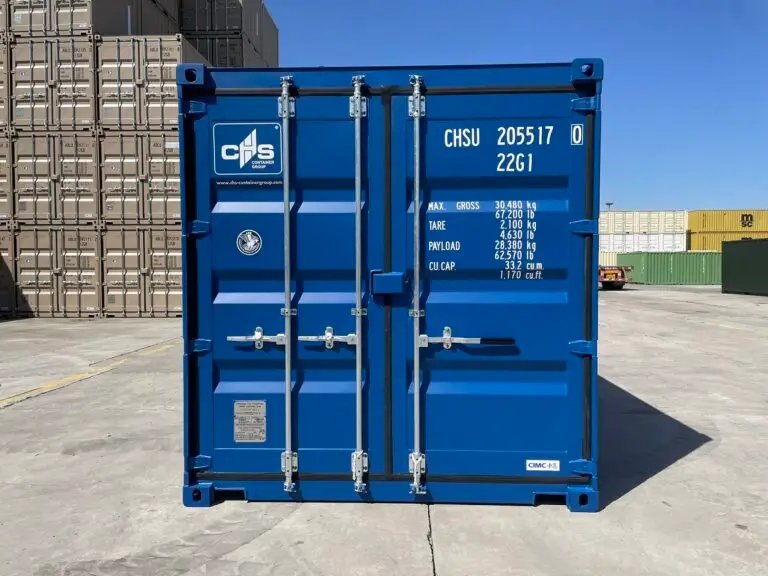

20ft New Hard Top Container: Top Loading Access for Heavy and Oversized Cargo
The 20ft New Hard Top Container is built for operations where standard door access simply is not enough. Its defining feature is a removable solid steel roof that can be lifted off entirely by crane or forklift, opening up the full top surface of the container for loading heavy, oversized, or irregularly shaped cargo from above. Once loaded, the roof reattaches to provide complete weather protection and structural security during transport or storage.
This is a one trip container, meaning it was manufactured to current ISO standards, used for a single voyage from the factory, and arrived in near pristine condition. You get the strength and certification of a brand new unit with minimal wear, factory fresh paint, and hardware that operates exactly as designed.
How the Hard Top Design Works
The steel roof panel sits on the container frame and is secured with locking mechanisms at multiple points around the perimeter. When you need top access, a crane lifts the entire roof panel clear of the container, leaving the full internal area open and accessible from above. Heavy items such as machinery, engines, transformers, coils, and fabricated steel components can be lowered directly into position without needing to fit through the end doors. Once cargo is placed and secured using the internal lashing rings, the roof is lowered back into position and locked, restoring the container to a fully enclosed, weatherproof, and stackable unit.
Key Features
- Removable solid steel roof: Lifts off completely for unrestricted top loading access. Reattaches securely for full weather and security protection during transit and storage.
- Wide opening end doors: Standard double cargo doors provide conventional access for items that can be loaded horizontally through the door opening.
- Internal lashing rings: Multiple tie down points inside the container allow cargo to be strapped and secured for safe transport, preventing movement and shifting during the journey.
- Corten steel construction: The entire container is fabricated from weathering steel that naturally resists corrosion and provides exceptional durability in all outdoor environments.
- ISO and CSC certified: Fully compliant with international shipping standards for safe container handling, stacking, and ocean transport.
- Forklift and crane compatible: Standard corner castings and forklift pockets allow handling with all common container lifting and transport equipment.
Specifications
| Internal Dimensions (L x W x H) | |
|---|---|
| Imperial | 19 ft 4 in x 7 ft 9 in x 7 ft 10 in |
| Metric | 5,898 x 2,352 x 2,390 mm |
| External Dimensions (L x W x H) | |
|---|---|
| Imperial | 19 ft 11 in x 8 ft x 8 ft 6 in |
| Metric | 6,058 x 2,438 x 2,591 mm |
| Door Opening (W x H) | |
|---|---|
| Imperial | 7 ft 8 in x 8 ft 6 in |
| Metric | 2,338 x 2,585 mm |
| Weight and Capacity | |
|---|---|
| Interior Floor Space | 149 sq ft |
| Volume | 1,165 cubic feet |
| Net Weight (Tare) | 5,071 lbs (2,300 kg) |
| Max Gross Weight | 67,200 lbs (30,480 kg) |
What Does One Trip Mean
A one trip container has been manufactured at the factory, loaded with cargo for its first and only ocean voyage, and delivered to its destination port. It has not been in repeated shipping service. The result is a container in near new condition with factory applied paint still intact, clean interior surfaces, doors and hardware that operate smoothly, and no structural repairs, patches, or heavy wear marks. It is the closest thing to a brand new container without paying the premium of a unit that has never been shipped at all.
Construction
- Reinforced roof frame: The perimeter frame that supports and secures the removable roof panel is engineered for repeated lifting cycles without deformation or seal degradation.
- Corrugated steel walls: Side and end panels feature corrugated profiles for maximum rigidity and impact resistance.
- Marine grade plywood floor: A thick plywood deck over steel cross members provides a flat, stable loading surface rated for heavy point loads.
- Weatherproof seals: Rubber gaskets around the roof perimeter and door frames prevent water ingress when the container is fully closed.
Ideal Applications
- Industrial machinery and heavy equipment transport
- Steel coils, plate, and fabricated metal components
- Electrical transformers and generators
- Marble, granite, and heavy building materials
- Oversized manufacturing components
- Project cargo that cannot fit through standard doors
- Dense raw materials requiring crane loading
- Secure weatherproof storage with top access capability
Delivery Options
This container can be delivered with or without crane offloading. If you choose self collection, our team will coordinate pickup and you will need a suitable vehicle and equipment to offload safely at your property.
Top loading capability combined with full weather protection and international shipping certification. Request a quote to discuss delivery, custom color options, or additional fittings for your operation.
