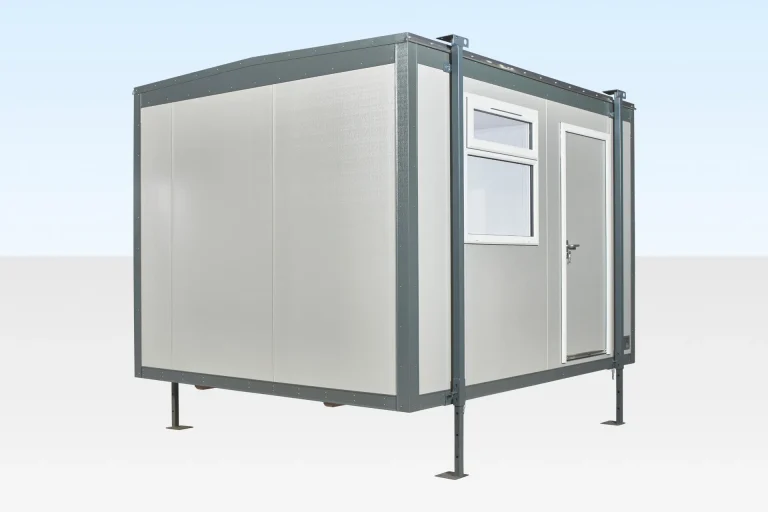

12ft x 10ft Jackleg Cabin (Plastisol): Extra Length for More Flexible Workspace
The 12ft x 10ft Jackleg Cabin provides additional length over our 10ft x 10ft model, giving you a 3.54m by 2.93m internal floor area that comfortably accommodates a desk and meeting space, a canteen setup, or multiple workstations without feeling cramped. Finished with a plastisol coated exterior in goosewing grey, this cabin offers enhanced weather protection with a smooth, durable surface that resists scratching, fading, and corrosion better than standard painted finishes.
The fixed open plan layout keeps the interior flexible for various configurations, while the option to include a fitted canteen makes it equally suitable as a welfare break room. With heating, lighting, twin power sockets, double glazed window, and professional interior finishes all included, this cabin arrives ready to connect and occupy within hours of delivery.
Why 12ft x 10ft
The 10ft x 10ft cabin provides a good square workspace, but some applications need just a little more length: room for a small kitchen counter alongside a desk, space for a meeting table plus storage, or capacity for three workstations instead of two. The 12ft x 10ft adds 600mm of extra internal length that provides this additional capacity without significantly increasing the site footprint or delivery complexity. It is the practical middle ground between the compact 10ft square and the larger 20ft rectangular cabins.
Key Features
- 12ft x 10ft layout: 3.54m x 2.93m internal dimensions provide generous floor area for multi use configurations.
- Plastisol coated exterior: A durable, scratch resistant finish in goosewing grey that outperforms standard paint for long term weather exposure.
- Jackleg mounting: Adjustable steel legs raise the cabin off the ground and allow leveling on uneven surfaces.
- Optional fitted canteen: Choose open plan or include a canteen setup depending on your site welfare requirements.
- UPVc double glazed window: Natural light with thermal insulation and reduced condensation.
- Panel heater with timer: Programmable heating for comfortable temperatures during occupied hours.
- LED strip light: Bright, energy efficient overhead illumination.
- Two twin 13A sockets: Four power outlets for equipment, kettles, chargers, and appliances.
- Vinyl plank effect flooring: Durable, attractive grey wood plank vinyl that cleans easily.
- Vinyl faced white plasterboard interior: Clean, bright, wipe down walls and ceiling.
Specifications
| External Dimensions | |
|---|---|
| Length | 3,660 mm (12 ft) |
| Width (excluding jacks) | 3,050 mm (10 ft) |
| Width (including jacks) | 3,170 mm (10 ft 5 in) |
| Height | 2,630 mm (8 ft 8 in) |
| Internal Dimensions (L x W x H) | |
|---|---|
| Metric | 3,540 x 2,930 x 2,230 mm |
| Imperial | 11 ft 7 in x 9 ft 7 in x 7 ft 4 in |
| Door Opening (W x H) | |
|---|---|
| Metric | 840 x 1,980 mm |
| Imperial | 2 ft 9 in x 6 ft 6 in |
| Services and Finishes | |
|---|---|
| Floor | 18mm OSB3 board with 2mm vinyl covering |
| Walls and Ceiling | 12.5mm vinyl faced white plasterboard |
| Window | 1 UPVc double glazed |
| Lighting | 1 LED strip light |
| Heating | 1 panel heater with timer |
| Power | 2 twin 13A sockets (4 outlets total) |
| Electrical | 230V 63 amp RCD |
Construction
- Plastisol coated steel panels: A polyester based coating bonded to galvanized steel provides a smooth, durable exterior surface that resists UV degradation, scratching, and corrosion.
- Insulated throughout: Walls, floor, and ceiling insulation maintains comfortable temperatures and reduces energy consumption.
- Jackleg support system: Adjustable steel legs with base plates for stable, level installation on varied ground conditions.
- Fixed window and door positions: Factory set for optimal security, light, and structural performance.
Ideal Applications
- Construction site offices and welfare rooms
- Canteen and break facilities
- Temporary project offices
- Security and gatehouse stations
- Drying rooms and changing areas
- Small meeting rooms
- Sales offices and reception points
- School and campus temporary spaces
Extra length, enhanced exterior finish, and ready from stock. Request a quote for delivery scheduling or to discuss the canteen option and multi unit configurations.
